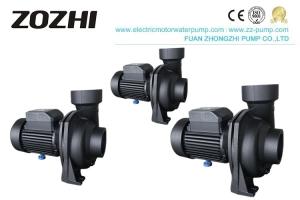

NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation
Premium Products
NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation
Brand Name :ZOZHI
Model Number :NFM-129A
Certification :CE/SGS/ISO
Place of Origin :China
MOQ :1pc
Price :negotiated
Payment Terms :T/T, L/C
Supply Ability :30000pcs/month
Delivery Time :25 working days after received your payment
Packaging Details :Packed in cartons or pallets
Item Name :Centrifugal Water Pump
Power :2.0HP
Flow Max :36000
Head Max :15
Pipe Size :3"x3"
Feature :Gardening Irrigation
Contact Now
NFM Series Centrifugal Water Pump 1hp 2hp 3hp Compact Size For Gardening Irrigation
Centrifugal Water Pump
NFM pumps are specially designed to achieve high delivery rates with low to medium heads for industrial and agricultural use. Its volute and impeller make it able to pump water that is even fairly dirty. High delivery rates under a continuous or heavy-duty, making them advantageous for rain and gravity irrigation, for pumping water from lakes, rivers, wells, and for a wide variety of industrial uses where high delivery rates must be achieved at low to average heads. With a single centrifugal impeller mounted directly on the motor shaft, the NFM pumps are compact, extremely reliable, very simple to use, and almost maintenance-free. These pumps should be installed in a covered area, protected against the weather. Pump body: Cast Iron Impeller: Brass/Cast/Aluminum Motor: Closed, externally ventilated Insulation class: B and F Protection class: IP44 or IP54 Mechanical seal: Stainless steel/Carbon-ceramic Shaft: 45# Steel / Stainless steel Thermal protector (if required) The normal power standard is 220V 50Hz single phase. Three-phase 220/380V/50Hz, 220/440V/60Hz, single-phase 230V,240V,127V, 110,115V/60Hz models are available on request.
Product Power 0.6-2.2KW
Model
Power
Ampere
Speed
Q.Max
H. Max
S.Head
Pipe dia
N.W.
L×W×H
HP
kW
(V)
(r.p.m)
(L/min)
(m)
(m)
(mm)
(kg)
(mm)
NFm-128B
0.80
0.60
3.20
2850
400
12.5
9
50×50
18
370×220×260
NFm-128A
1.00
0.75
5.20
500
13.7
50×50
22
370×220×260
NFm-129B
1.50
1.10
7.00
500
15
75×75
45
470×265×350
NFm-129A
2.00
1.50
9.60
850
15
100×100
52
500×310×360
NFm-130C
1.50
1.10
7.00
600
12
75×75
32
435×265×350
NFm-130B
2.00
1.50
9.60
850
13
75×75
34
435×265×350
NFm-130A
3.00
2.20
13.90
1000
15
75×75
41
435×265×350
Attention to Parts:
Application
Production line
Our service:
1). We are happy that the customer gives us some suggestions for price and products. 2). Any questions, please let us know it in the first by E-mail or Telephone. We can deal with them for you in time. 3). Offer our customers the lowest prices. Streamline the buying and paying processes. 4). Deliver goods to our customers all over the world with speed and precision. 5). Ensure the excellent quality of our products. 6). 12 months FREE warranty. 7). Accept OEM
Centrifugal Water PumpGuarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
FAQ:
1). Q: How about the MOQ? A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company? A: we make water pumps, motors, alternators, and diesel generators since 2006.
3). Q: Can you accept to use our logo? A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms? A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time? A: Usually, 10-30days. But it depends on your order quantity.
