Well Pump Easy Spare Parts Man Joints Automatic Pressure Controller
DESCRIPTION:
These easy spare parts are designed to automate all control operations of the pump. It calls the "Automatic Pressure Controller".If a special fault occurs, such as insufficient water, blockage of the suction pipe, etc., the product will confirm the fault, indicating that the red light of “failure” is on, and a stop signal will be sent to the pump to avoid damage to the pump due to water. When correcting the failure that caused the blockage, press the "Restart" button to allow the system to restart. When the pump is in the water supply, the controller can maintain constant pressure in the water supply system and reduce the water hammer effect in the water supply pipe. The controller also has a power-off reset function.
TECHNICAL DATA:
| Item Name | water pump automatic pressure sensor switch |
| Max Rated Current | 10A |
| Max Allowable Pressure | 1Mpa ( 10bar ) |
| Rated Voltage | 220V-240V |
| Frequency | 50/60HZ |
| Max Ambient Temperature | 60 ℃ |
| Connection | 1" male |
| Protection Degree | IP65 |
| Max Power | 1.1KW |
| Logo Custom | Custom |
FEATURE:
1. Stop and start the pump automatically
2. Stop the pump work in the case of water shortage automatically
3. After the power cut off, it can restart the pump automatically when the power is on.
4. Forced start
5. Connection thread: G1''
APPLICATION:
1. Irrigation water pump.
2. Water pump for water wells.
3. No water supply system.
4. Chemical, strong corrosive ban.

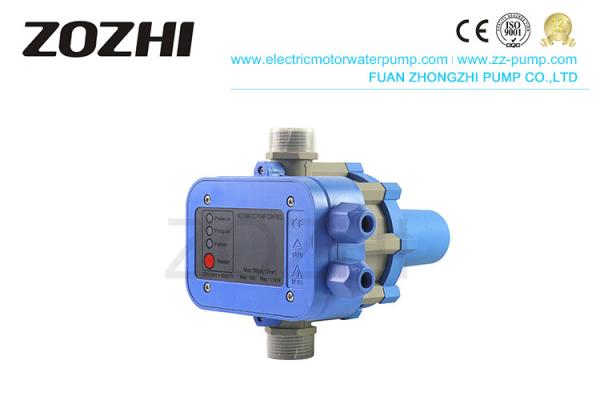

PRODUCE PICTURE:
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
